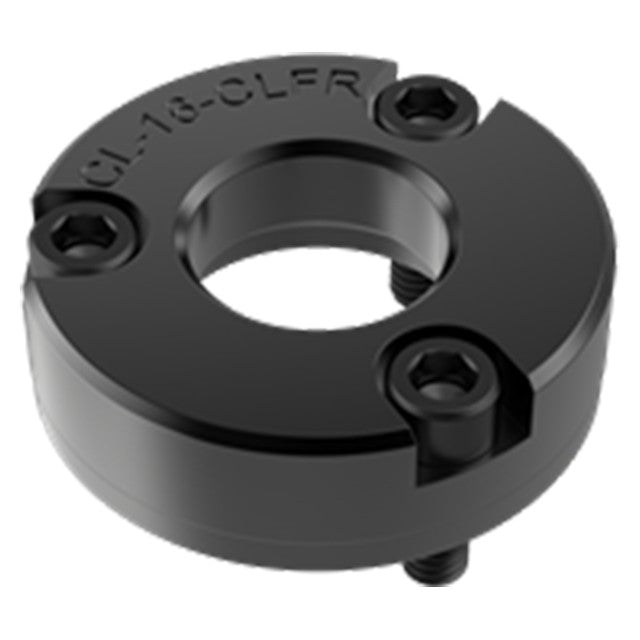

Carr Lock Face-Mount Receiver Bushings
The Carr Lock System requires that each Carr Lock Clamp be used together with a Carr Lock Receiver Bushing – either the face-mount type or the back-mount type. The clamp's locking balls engage the angled ID section of the Receiver Bushing, pulling the clamp firmly downward. Face-Mount Receiver Bushings can be bolted into a slip-fit bored hole from above the subplate, with three socket-head cap screws. Made in USA.
Application Information
Each mounting point consists of three components: (1) Carr Lock Clamp, with a precisely ground shank (2) Carr Lock Liner Bushing or clearance hole in the top plate (3) Carr Lock Receiver Bushing in the subplate.
Installation
Face-Mount Receiver Bushings can be bolted into a slip-fit bored hole from above the subplate, with three socket-head cap screws (furnished). The installation hole must be jig bored for accurate size and location. Installed bushings will be approximately .012" below the subplate's top surface.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 4340 Steel | Heat Treated Rc 50-54 | Black Oxide | ✔ | ✔ |
Parts Specification
| Id (mm) | A Diameter Nominal (Inch) | A Bushing Diameter (Inch) | A Hole Diameter (Inch) | B Bushing Length (Inch) | B Hole Depth (Inch) | C (Inch) | F Thread (Inch) | G (Inch) | H (Inch) | J Diameter (Inch) | M (Inch) |
| 50mm | 3-1/2" | 3.4998 / 3.4994" | 3.4999/ 3.5004" | 1.225" | 1.239 / 1.241" | 2.156" | 3/8-24" | 1.00" | 0.475" | 2.916" | 1.80" |
