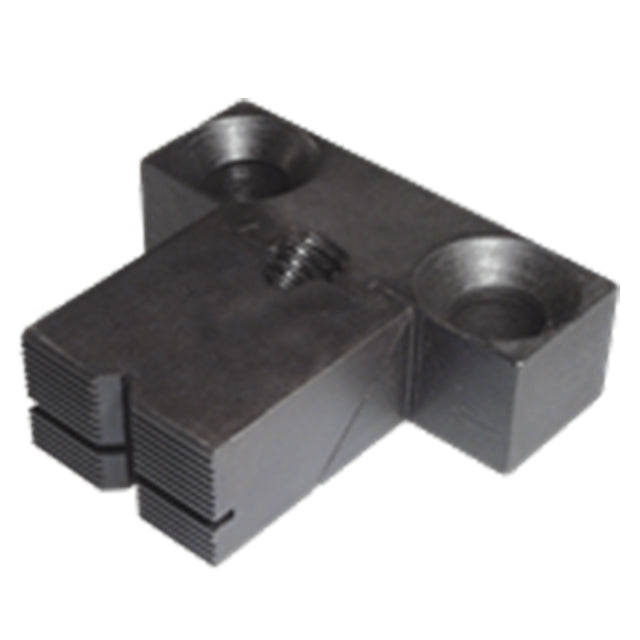

Serrated Fixed Edge Clamps
These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding nose with a hex wrench. V-groove in nose is useful for clamping round parts or corners.The fixed edge clamps shown here are ideal for permanent fixtures, because they have two fixed mounting holes instead of a slot. This allows the clamp to be more compact, and ensures correct position without adjustment.
High-Nose Version
The high-nose version shown here is best for most applications-gripping high on the workpiece, close to the machining plane, to provide maximum clamping rigidity. This version includes a removable aluminum nose cover for clamping soft or machined parts without damage.
Material
| Item | Material | Heat Treat | Finish | Heat Treat | Finish |
| Body and Nose | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Clamping Screw | 4140 Steel | Heat Treated Rc 43-45 | Black Oxide | Yes | Yes |
Parts Specification
| Mounting Screw Size (Inch) | A (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | J (Inch) | K (Inch) | L (Inch) | M (Inch) | Q (Inch) |
| 5/16-18" | 1-27/32" | 5/8" | 1" | 1" | 1-3/4" | 11/16" | 7/16" | 1/4" | 1-5/16" | 5/32" | 1-1/2" |
