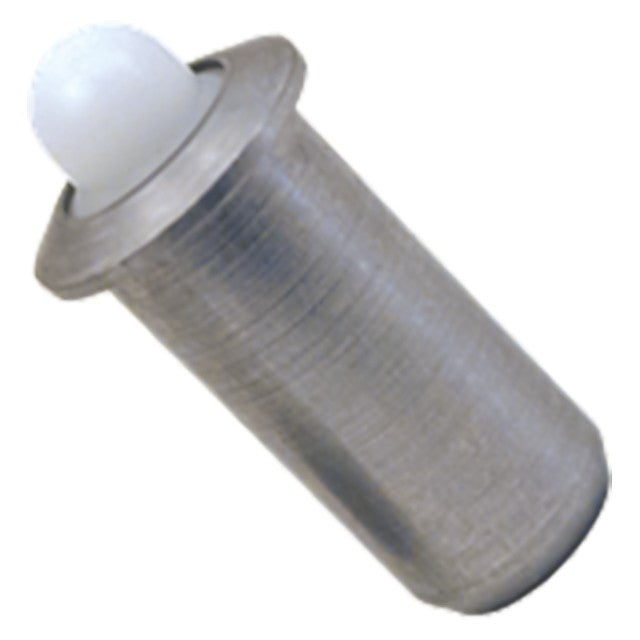

Press-Fit Spring Plungers-Stainless Steel with Delrin Nose
Simple, economical spring-loaded plunger ideal for installation in softer materials, such as aluminum, wood, or plastic. Use when a threaded hole would be impractical or when adjustment is not required. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess the shoulder.
The version has a stainless steel body for extra corrosion resistance, and a Delrin plunger nose to prevent marring. Made in USA.
Internal View
Nose Extended
Nose Retracted
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 300-Series Stainless Steel | - | - | Yes | Yes |
| Plunger Nose | Brown Delrin 500 (heavy force) or white Delrin 500 (light force) | - | - | Yes | Yes |
| Spring | 302 Stainless | - | - | Yes | Yes |
Parts Specification
| A Diameter (inch) | Initial End Force (lbs) | Final End Force (lbs) | B (inch) | C+/-.010 (inch) | D±.001 / -.002 (inch) | E Diameter (inch) | F (inch) |
| 0.312" | 2 lbs. | 5 lbs. | 0.643" | 0.151" | 0.186" | 0.375" | 0.045" |
