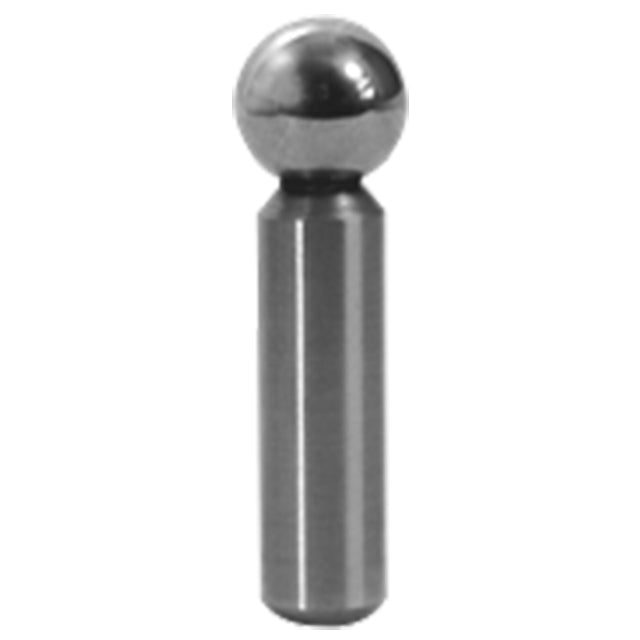

Construction Balls-Adjustable Type
Precision tooling ball used as a reference point for critical inspection, layout, and machining operations. Adjustable type has no shoulder, so it can be set at any desired height then locked with a setscrew. Concentricity between ball and shank is .0002" TIR. Made in USA.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel or equivalent | Heat Treated Rc 54-56 | - | Yes | Yes |
Parts Specification
| Ball Diameter Nominal (Inch) | Ball Diameter Actual (Inch) | A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) |
| 1/2" | 0.5000 / .4997" | 3/8" | 0.3750 / .3747" | 1.50" |
