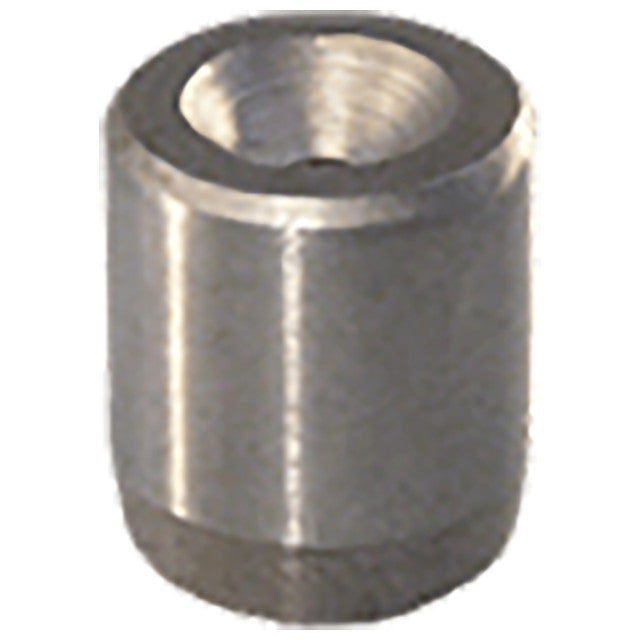

Ball Detent
Press-in receptacle that provides a perfect mating hole for a Ball Plunger. The 90° point provides smooth detent action and reliable retention. These hardened receptacles resist side loads to prevent wear to the parent Material. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 440 Stainless Steel | Yes | Heat Treated | Yes | Yes |
Parts Specification
| A Diameter (Inch) | B (Inch) | C Diameter (Inch) |
| 0.2659" | 5/16" | 0.139" |
