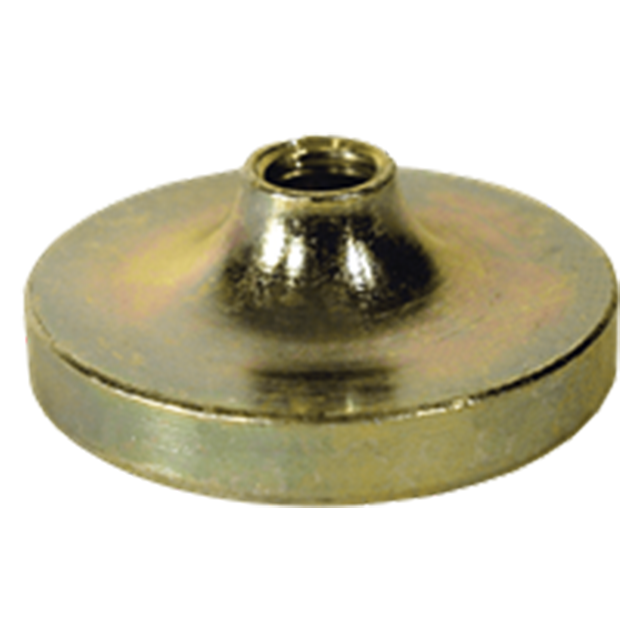

Extra-Large Feet-Type E
Type E swivel feet have an extremely large contact area. Made in USA.
Patented Design
Feet for Swivel Screws are an important part of the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use.
Material
| Steel, Zinc Plated | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1215 Steel | Yes | Zinc Plated Yellow Chromate | Yes | Yes | |
Parts Specification
| Fits Body Thread Sizes | B Diameter (Inch) | E (Inch) | G (Inch) | H (Inch) |
| 1/2-13" and M12 | 1.50" | 1/4" | 0.26" | 0.56" |
