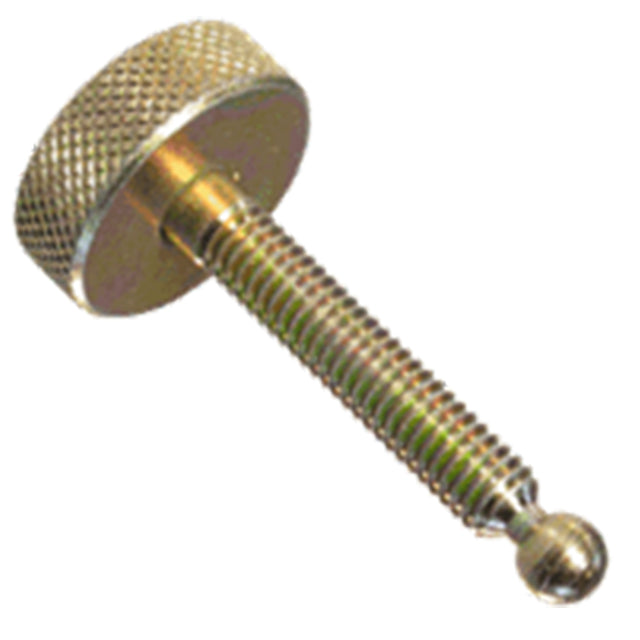

Swivel Head Screws
High-quality thumb screw that accepts a wide assortment of swivel feet. The swivel screws include the Type D ball foot. Knurled head provides a positive grip for finger tightening in light clamping applications. Choice of several lengths in each thread size. Made in USA.
Swivel Foot
Swivel Head Screws use the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use.
Material
| Steel, Zinc Plated | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized Hardened | Zinc Plated yellow Chromate | Yes | Yes |
| Head and Foot | 1215 Steel | - | Zinc Plated yellow Chromate | Yes | Yes |
Parts Specification
| A Thread (Inch) | B Diameter (Inch) | F (Inch) | G (Inch) | M (Inch) | N Diameter (Inch) | P (Inch) |
| 1/4-20" | 1" | 5/16" | 1/8" | 2-1/32" | 1/4" | 5/16" |
