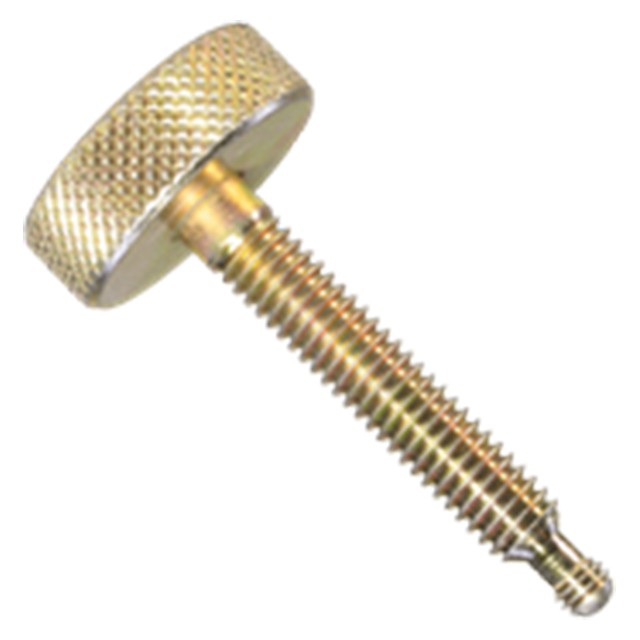

Bodies for Swivel Head Screws
High-quality thumb screw that accepts a wide assortment of swivel feet. Knurled head provides a positive grip for finger tightening in light clamping applications. Choice of several lengths in each thread size. Made in USA.
Swivel Foot
Swivel Head Screws use the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin feet are optional for types A and B. Note: Delrin feet are not threaded-they snap on and off.
Material
| Steel, Zinc Plated | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized-Hardened | Zinc Plated Yellow Chromate | Yes | Yes |
| Head | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
Parts Specification
| A Thread | D Diameter (Inch) | E (Inch) | F (Inch) | G (Inch) | H Thread |
| 5/8-11 | 1-1/4" | 1/2" | 4-15/16" | 3/16" | 7/16-20 LH |
