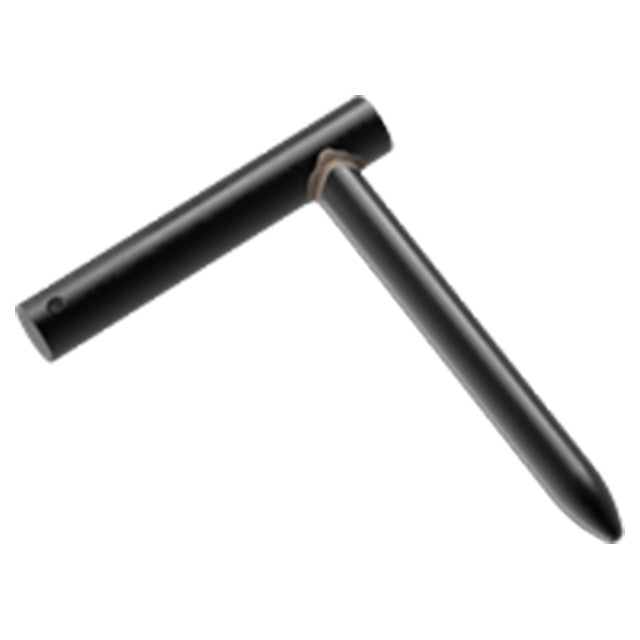

L Pins
are removable locating pins, precision ground for accurately aligning holes. L shaped pins feature a body inset into a solid handle and silver soldered to create a sturdy assembly. L pin handle ends have a small hole for attaching an optional cable. Made in USA.
Application Information
L Pins can be used for accurately aligning two plates
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle | 1215 Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) |
| 9/32" | 0.2812" | 4" | 3" | 7/16" | 1/2" |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
