Wide-Nose Clamp Strap Assembly
Mini-size version of Tapped-Heel Clamp Straps. Extra-wide nose can be used to distribute clamping force evenly, or to clamp two parts simultaneously. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.

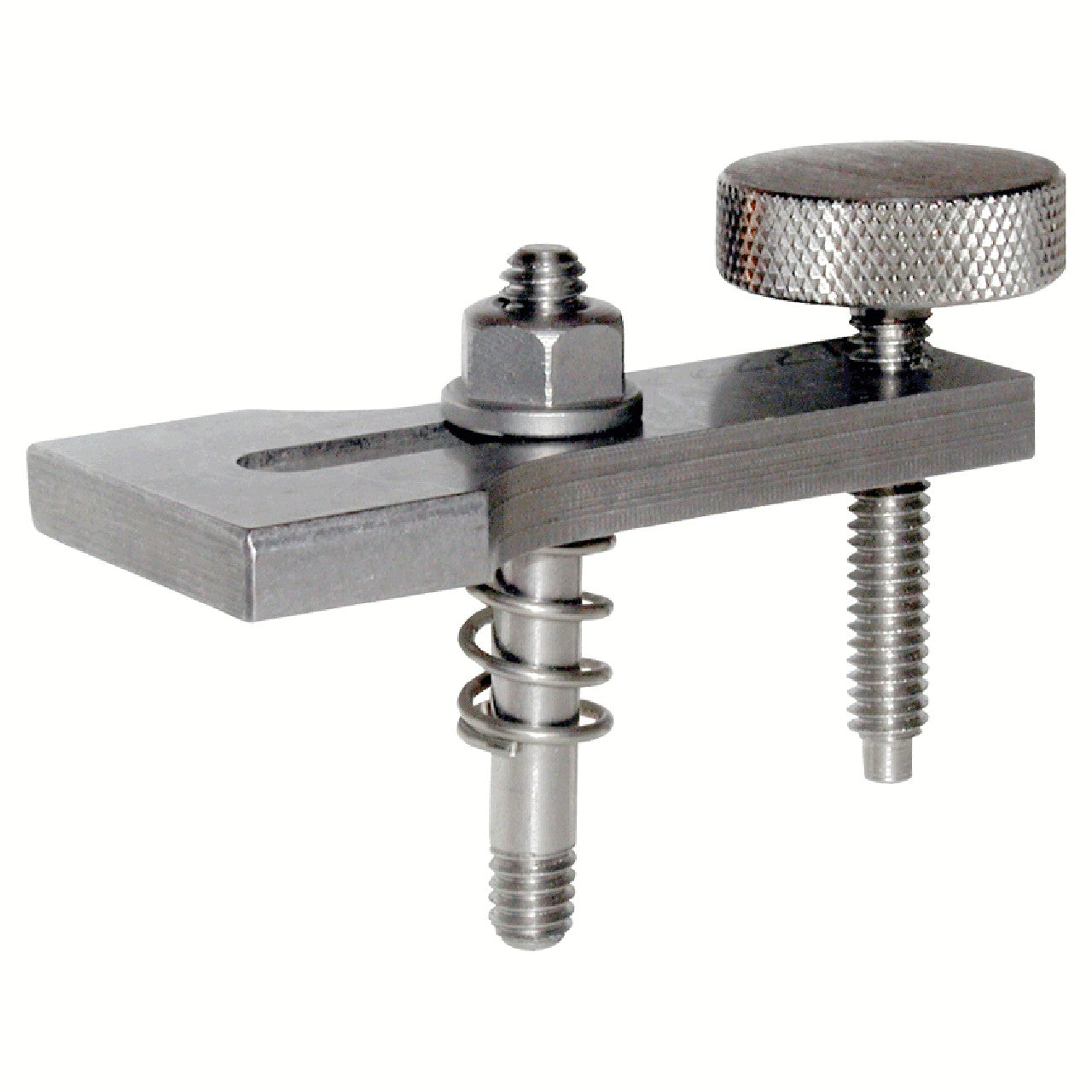

Assembly with Knurled-Head Screw
This assembly includes a Wide-Nose Clamp Strap plus the following Items:
- Knurled-Head Screw
- Flange Nut
- Fixture Stud
- Clamp Spring
- Flat Washer
- Jam Nut
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| Thread Size (Inch) | A (Inch) | B (Inch) | C (Inch) | E (Inch) |
| 1/4-20" | 2-3/4" | 1-1/4" | 1/4" | 1-3/16" |
