Product Information

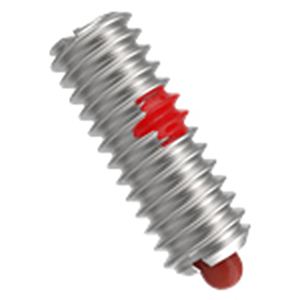

Self-contained plunger-and-spring device available in many sizes and forces. Short Spring Plungers have a shorter overall length, and shorter stroke, than our standard Spring Plungers. The version shown here has a stainless steel body for extra corrosion resistance, and a Delrin ® plunger nose to prevent marring. Available in thread sizes from #8-32 to 1/2-13, each with a choice of light or heavy spring force. Made in USA. Install and/or adjust from either end. When using the slot at the plunger end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring (see Related Products below). A thread-locking element holds the unit securely in place after installation.
| Item | Material | Head Tread | Stud | DFARS | RoHS |
| Body | 302 Stainless Steel | - | - | ? | ? |
| Plunger Nose | Brown Delrin ® 500 (heavy force) or white Delrin ® 500 (light force) | - | - | ? | ? |
| Spring | 302 Stainless | - | - | ? | ? |
| Manufacturer Part Number | CL-43-SSPN-1 |
| Screw Size (Inch) | 17/32" |
| Thead Size (Inch) | 1/4"-20 |
| Product Type | Short Spring Plunger |
