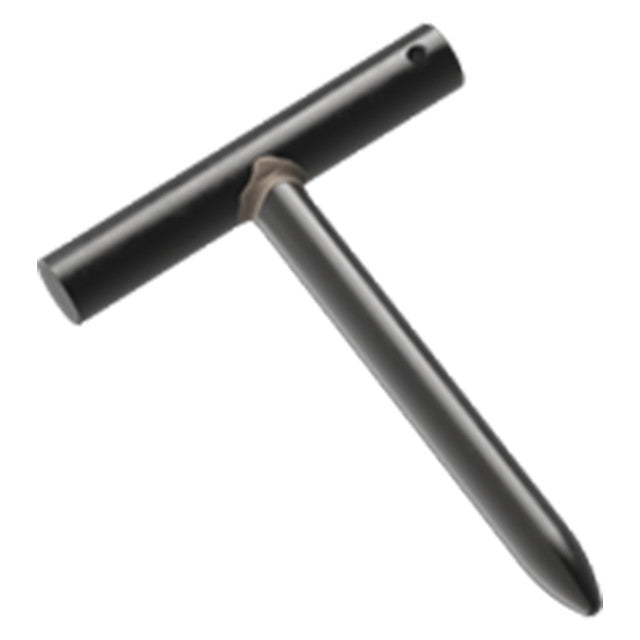

T Pins
are removable locating pins, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Made in USA.
Application Information
T Pins can be used for accurately aligning two plates
Optional Cable
To order T Pins with a standard cable assembly attached, add "-C" to the part number.
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle | 1215 Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal (inch) | A Diameter Actual (inch) | B (inch) | C (inch) | D Diameter (inch) | E (inch) |
| #30" | 0.1285" | 3" | 1-1/2" | 1/4" | 1/4" |
