CL-400-PA-4000lbs.

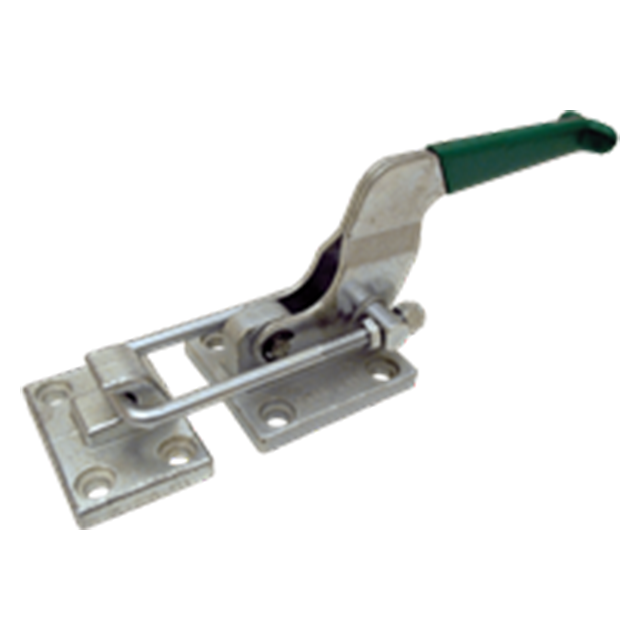

Heavy-duty latch clamp. Rugged alloy steel base and latch plate provide great strength in a compact overall size. Versatile latch clamp with a threaded U bolt for adjustability. 2-1/2" drawing movement. Threaded U bolt allows a 15/16" adjustment range.
Design Considerations
To achieve full holding capacity, U-bolt-type latch clamps must be used together with the optional latch plate, or with a suitable custom latch plate of equal width and centerline height.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Base and Latch Plate | Alloy Steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
| Handle, U bolt and crosspin | 1215, 1008, 1010, and/or 1018 steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) | Replacement U Bolt |
| Flanged Base | 4000lbs. | 2.8lbs. | CL-400-PA-UBOLT |
