Carr Lane

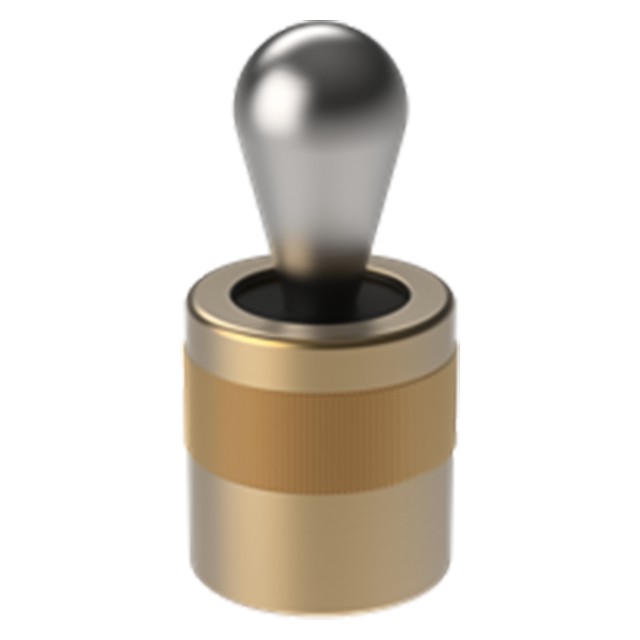

Carr Lane CL-4-SLP-1 | 1/4" Diameter Spring Locating Pin

Carr Lane CL-4-SLP-1 | 1/4" Diameter Spring Locating Pin

SKU: 50016442

Regular price $7.95 USD
Regular price $7.95 USD Sale price $7.95 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

Free Shipping on Orders Over $75

View full details

Spring Locating Pins-Steel Pin

Spring Locating Pins are press-fit inserts that provide an extremely compact way to apply side force to a workpiece, for positioning or light clamping. The version with a case-hardened steel contact pin and a coil spring, is the most popular. A protective rubber seal around the contact pin keeps out dirt and chips. This type has the most travel, so it allows the most part-size variation. Choice of light, medium, or heavy force in each size.

Application Information

Distance to Workpiece CalculatorThis calculator is used to determine the appropriate distance to install a spring locating pin from a workpiece.

Application Examples

Spring Locating Pins can also be used as grippers for light clamping

Internal View

Material

Item Material Heat Treat Finish DFARS RoHS
Pin Mild Steel Carbuized-Hardened Zinc plated clear chromate Yes Yes
Spring Music Wire - - Yes Yes
Housing Aluminum - - Yes Yes
Seal Rubber - - Yes Yes

Parts Specification

A Diameter (inch) Approx Side Force (lbs) B Diameter (inch) C (inch) D (inch) X Dim When Y Equals 1/16 X Dim When Y Equals 1/8 X Dim When Y Equals 3/16 X Dim When Y Equals 1/4 X Dim When Y Equals 5/16 X Dim When Y Equals 3/8 X Dim When Y Equals 7/16 X Dim When Y Equals 1/2 Or More
1/4" 2.2 lbs. 0.118" 0.157" 0.275" 0.015 0.019 0.019 0.019 0.019 0.019 0.019 0.019
