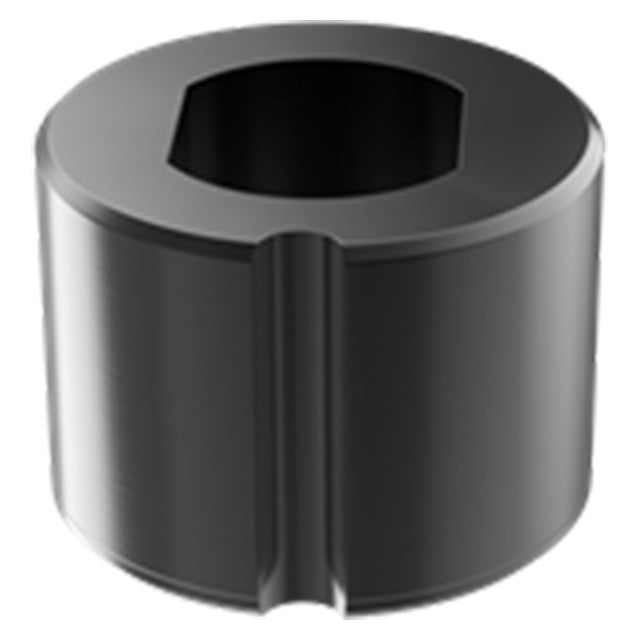

Slotted Locator Bushings
can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction. Made in USA.
Application Information
A standard press-fit P bushing (for primary location) and a Slotted Locator Bushing (for secondary location) are used with L Pins to align two holes without binding.
Installation
To install, first drill and ream hole for roll pin (furnished), then bore large bushing hole for .0003-.0005" press fit. Press in bushing and roll pin simultaneously for accurate orientation.
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Bushing | Tool steel | Rc 58-62 | Black Oxide | Yes | Yes |
| Roll Pin | Spring steel | - | N/A | Yes | Yes |
Parts Specification
| Pin Diameter (Inch) | A (Inch) | B Diameter (Inch) | C Diameter (Inch) | L (Inch) | M Diameter (Inch) | N (Inch) |
| 1/4" | 0.2501 / 0.2507" | 0.375" | 0.7500" | 0.40" | 3/16" | 3/8" |
