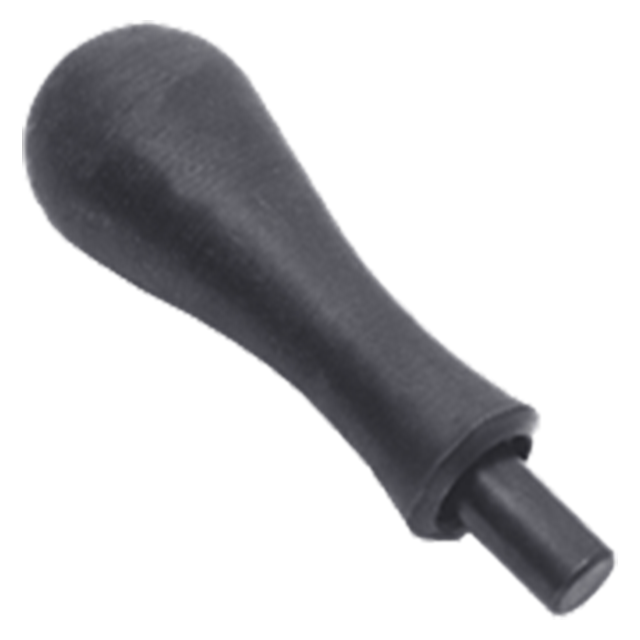

Revolving Handles-Rounded Design
Attractive rounded-design steel handle with a black oxide Finish. Revolving Handles have an internal bearing that allows the handle to remain fixed in your hand, for firm gripping while turning a Hand Wheel or crank. Made in USA.
Application Information
Revolving Handles can be used to make custom crank handles
Design Considerations
Do not use press-fit handles on aluminum Hand Wheels. The difference in thermal expansion between steel and aluminum could cause the handle to loosen.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Yes | Black Oxide | Yes | Yes |
Parts Specification
| Handle Size | A (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E Diameter (Inch) |
| Size 2 | 2-3/8" | 19/32" | 5/16" | 1" | 5/8" |
