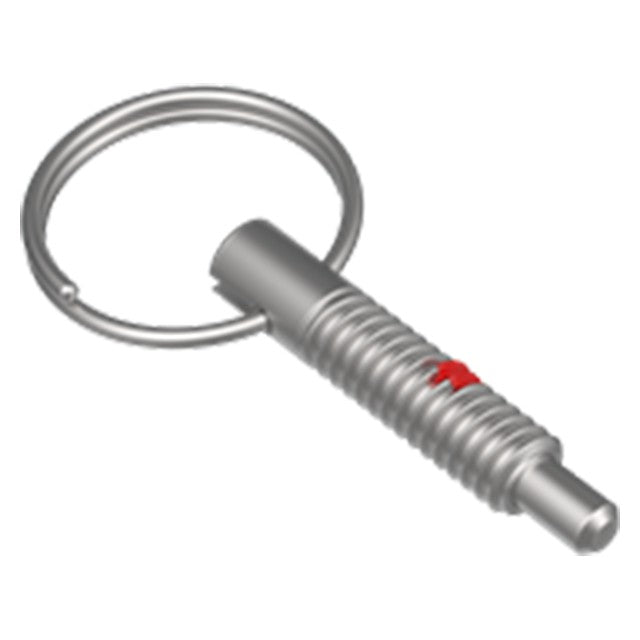

Hand-Retractable Plungers-Pull Ring
Spring-loaded plunger that locks in retracted position. Handy pull ring allows quick actuation, yet folds out of the way when not in use. To lock, pull the ring back and turn 90°. Made in USA.
Application Information
Operation
Extended
Retracted
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger, Body, Knurled Head and Spring | 300-series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter (inch) | C (inch) | D (inch) | E (inch) | F Diameter (inch) | H (inch) | J Diameter (inch) |
| 1/4-20 | 1 lbs. | 2.5 lbs. | 0.156" | 1/4" | 13/16" | 1-1/8" | 1" | 7/64" | 1/4" |
