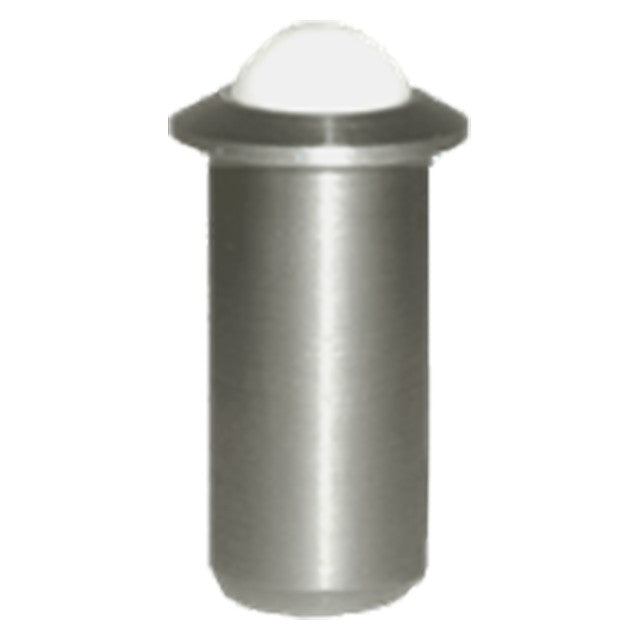

Press-Fit Ball Plungers-Stainless Steel with Delrin Ball
Simple, economical ball plunger ideal for installation in softer materials, such as aluminum, wood, or plastic. Use when a threaded hole would be impractical or when adjustment is not required. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess the shoulder.
The version has a stainless steel body for extra corrosion resistance, and a Delrin ball to prevent marring. Made in USA.
Application Information
Internal View
Material
Body > 300-series stainless. Ball > White Delrin 500. Spring > 302 stainless. DFARS and RoHS compliant.
Parts Specification
| A Diameter (inch) | Initial End Force (lbs) | Final End Force (lbs) | B (inch) | C (inch) | D Diameter (inch) | E Diameter (inch) | F (inch) |
| 0.250" | 1.5 lbs. | 3.5 lbs. | 0.481" | 0.070" | 0.188" | 0.312" | 0.044" |
