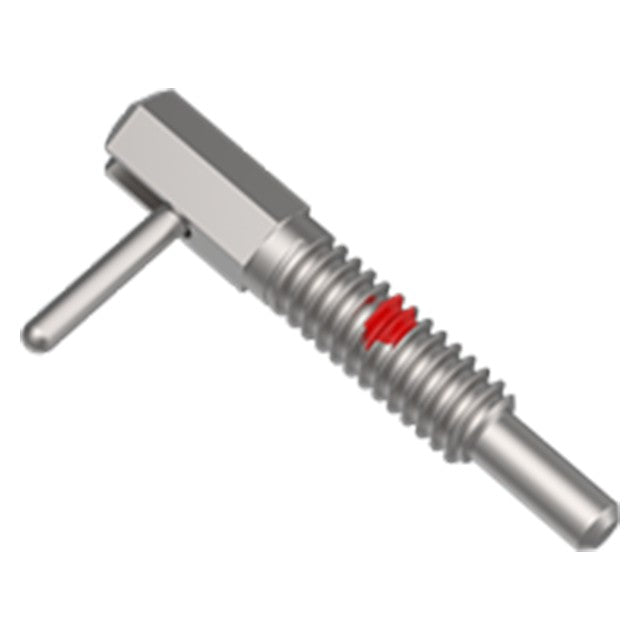

Hand-Retractable Plungers-L Handle, Long Stroke
Long-stroke spring-loaded plunger that locks in retracted position. Convenient L handle for quick retraction and locking. Made in USA.
Operation
Extended
Retracted
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger, Body, Knurled Head and Spring | 300-series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter (inch) | C (inch) | D (inch) | E (inch) | G (inch) | H (inch) | J Diameter (inch) |
| 1/4-20 | 0.5 lbs. | 2.5 lbs. | 0.156" | 3/8" | 5/8" | 1-1/4" | 1/4" | 5/8" | 3/32" |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
