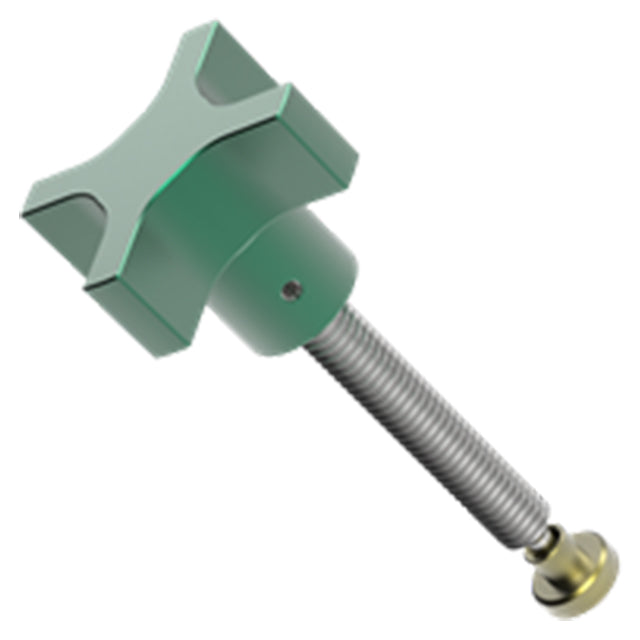

Extruded Hand Knob Swivel Feet
Extruded Hand knob assembly with a removable swivel foot. Clamping screw is securely pinned in the knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Made in the USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Knob | Extruded Aluminum | - | Green Anodize | Yes | Yes |
| Screw | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Steel Foot | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Delrin Foot | White Delrin 500 | - | Yes | Yes | Yes |
Parts Specification
| A Thread | B (Inch) | C (Inch) | D Diameter (Inch) | E Diameter (Inch) | F | H (Inch) | K Diameter (Inch) |
| 5/16-18 | 2-1/4" | 5/32" | 1-1/2" | 1/2" | 11/32 | 1-1/8" | 3/4" |
