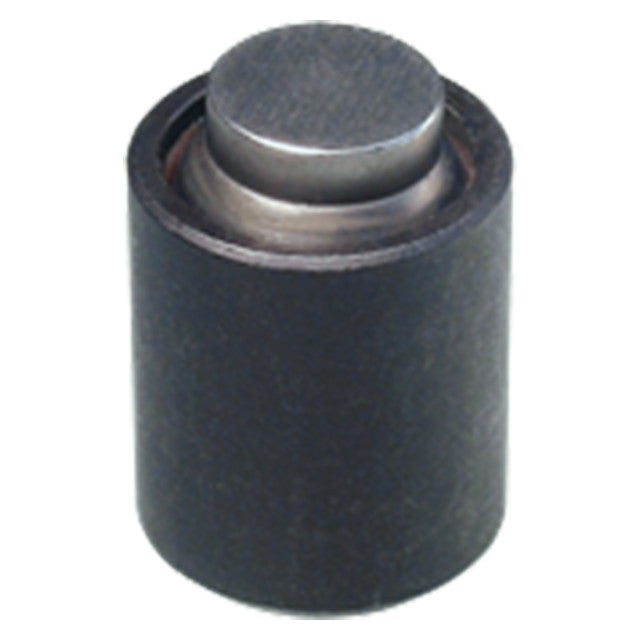

Gripper Swivel Pads-Mini
Mini-size rest pad with a built-in swivel ball held by a retaining ring. The flat gripper face is machined directly on the swivel ball. A positive stop prevents the ball from swiveling too far. Gripper Swivel Pads can be surface mounted or installed in a counterbored hole. Made in USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Flat steel swivel ball | Steel, hardened | - | Black Oxide | Yes | Yes |
| O-ring | Ruber | - | - | Yes | Yes |
Parts Specification
| A Diameter (Inch) | B Diameter (Inch) | C (Inch) | D Thread (Inch) | E (Inch) | F Ball Diameter (Inch) | G | H (Inch) | Load Capacity (lbs) |
| 1/4" | 7/16" | 7/16" | #8-32" | 5/32" | 9/32" | 14° | 0.062" | 3300 lbs |
