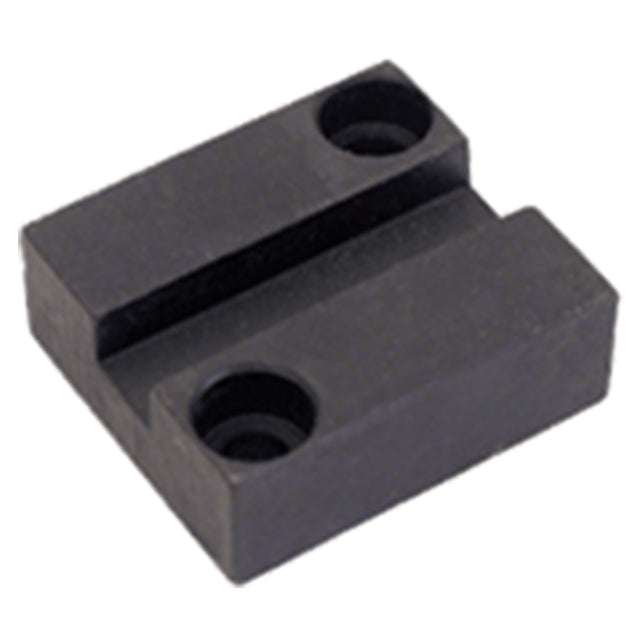

Guide Blocks
Rear-support sliding block for Tapped-Heel Clamp Straps. Guides clamp strap straight back for part loading.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Clamp-strap Stud Size | A | B | C | D | E | F | G Mounting Screws | H | J |
| 3/8-16 or M10 | 0.265 | 0.20 | 1/2 | 1-1/8 | 7/32 | 2 | #10-32 or M5 | 3/4 | 1-9/16 |
