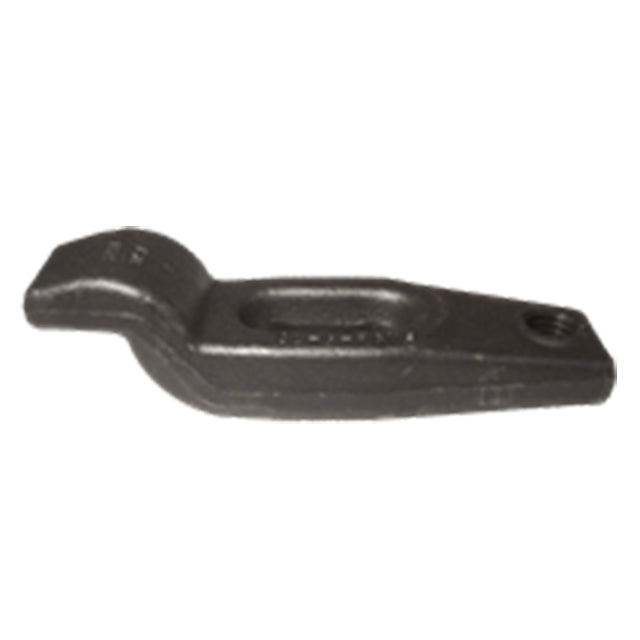

Forged Clamp Straps-Gooseneck
Gooseneck design provides additional machining clearance above the clamp. High-strength Tapped-Heel Clamp Strap, these clamp straps have a tapped heel that accepts an adjustable rear support, such as a Stud leveling Foot.
Optional Locator Nose
The locator-nose version is ideal for workpieces with machined sides. The nose's accurately machined locating notch ensures precise, repeatable clamp location with a small contact area for increased machining clearance.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Forged Steel, 70,000 psi yield strength | - | Black Oxide | Yes | Yes |
Parts Specification
| Stud Size (Inch) | A | B | C | D | E | F | G | H | J | K | L |
| 5/8-11 | 4 | 1-31/32 | 3/16 | 1-3/16 | 1-3/4 | 11/16 | 1/2 | 3/4 | 3/4 | 1-7/16 | --- |
