Cable

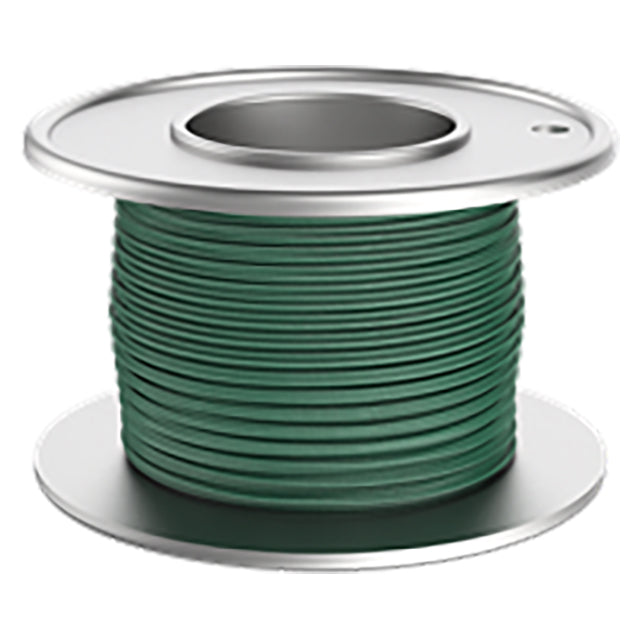

High-strength stranded wire cable with a green nylon coating. Choice of four cable diameters. Cable size #1 is made of stainless steel. Sizes #2, #3, and #4 are made of galvanized steel, Specify the length of cut cable pieces in inches to one decimal place, from 3.0" minimum to 599.9" maximum.A Cut pieces are held to +/-1/4" tolerance up to 24" long.
Application Information
Cable Assemblies are ideal for attaching removable alignment pins and other tooling components.
Material
Steel:Galvanized steel stranded wire, nylon coated. DFARS and RoHS compliant.
Parts Specification
| Material | Cable Size (Inch) | Length | D Diameter After Coating (Inch) | D Diameter Before Coating (Inch) | Cable Construction (Inch) | Breaking Strength(lbs) |
| Steel | 4" | 50 Feet | 0.187" | 0.125" | 7x19" | 800 |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
