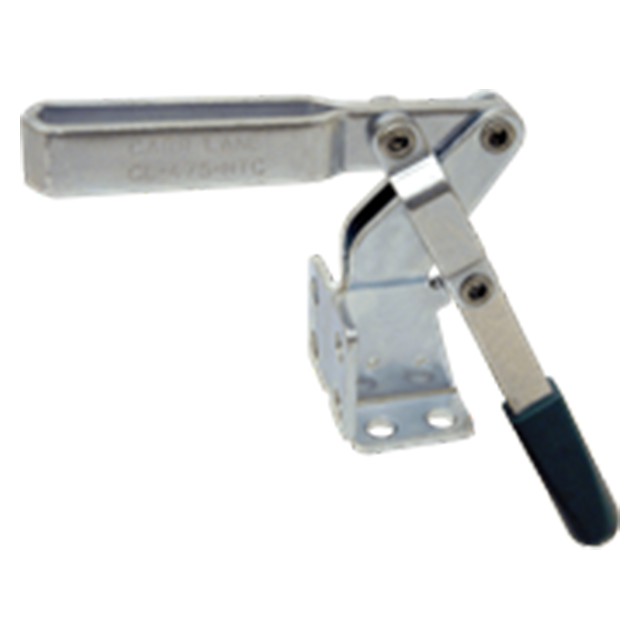

Extra-Wide Opening
Open Arm, Flanged Base
Extra-wide-opening clamp with a handle that locks at a downward angle. Unique up-then-down handle motion opens the clamping arm a full 185°. Dual flange bases allow mounting on vertical surfaces as well as horizontal. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. 375 lbs. holding capacity.
Clamping Action
Clamped Position
IntermeDiameter (Inch)te Position
Open Position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008,1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Solid Arm, Flanged Base | 375lbs. | 0.8lbs. |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
