Spring Stop Buttons-Spherical Radius

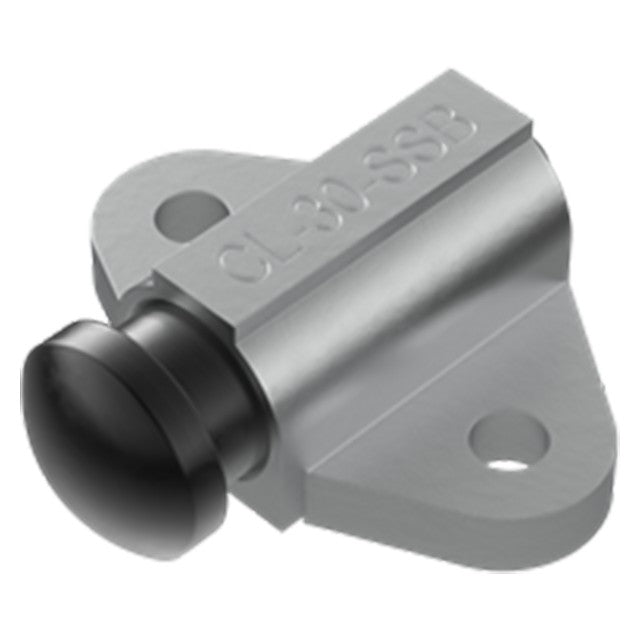

Spring Stop Buttons are flange-mounted Spring Plungers with a large contact face, ideal for applying side force to hold a workpiece against its locators until clamps are in place, and for other light clamping jobs. Type A, has a spherical-radius plunger to exert contact force at a single point. Choice of hardened steel plunger, stainless steel plunger, or Delrin plunger. Made in USA.
Application Information
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Aluminum Alloy | - | - | Yes | Yes |
| Spring | Stainless Steel | - | - | Yes | Yes |
| Socket-Head Cap Screw | Stainless Steel | - | - | Yes | Yes |
| Plunger | 300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| Stroke | Initial Contact Force (lbs) | Halfway Contact Force (lbs) | Final Contact Force (lbs) | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G | H Diameter (inch) | J (inch) | R (inch) |
| 1/4 | 16 lbs. | 32 lbs. | 48 lbs. | 1.500" | 11/16" | 1-7/32" | 1" | 1/4" | 7/16" | 1/4 or M6 | 13/16" | 9/32" | 9/64" |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
