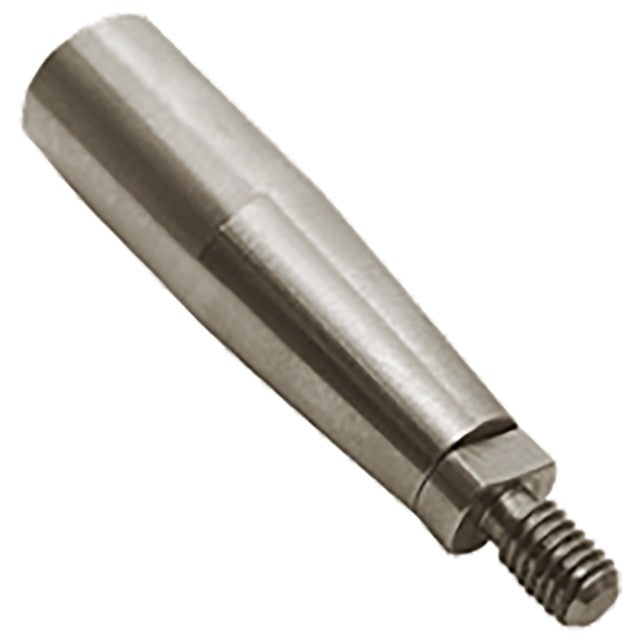

Revolving Handles-Square Design
Modern square-design handle made of stainless steel, with a polished finish. Revolving Handles have an internal bearing that allows the handle to remain fixed in your hand, for firm gripping while turning a Hand Wheel or crank.
Application Information
Revolving Handles can be used to make custom crank handles
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | Yes | Yes | Yes | Yes |
Parts Specification
| Handle Size | A (Inch) | B (Inch) | C Thread (Inch) | D Diameter (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) |
| Size 3 | 2-1/2" | 9/16" | 5/16-18" | 3/4" | 17/32" | 3/8" | 0.28" |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
