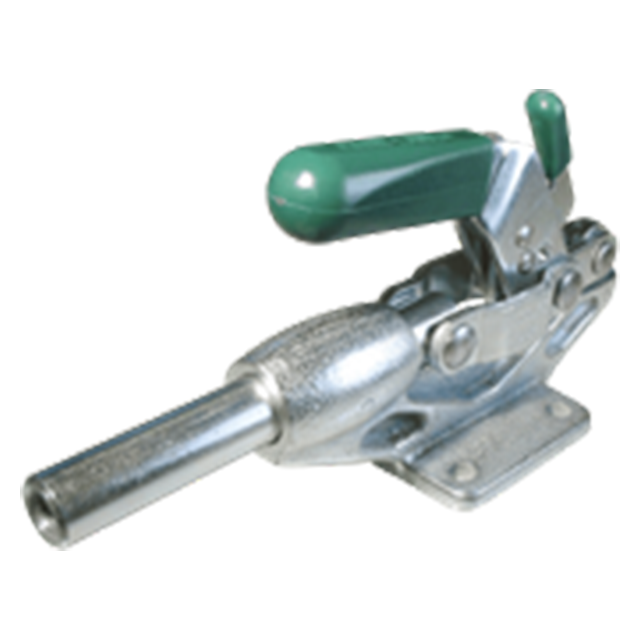

CL-300-LPC with Safety Lock-1500lbs.
Tapped Plunger
Safety-lock version of the CL-300-PC toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle. Please note, the safety lock functions only in extended position (push), not in retracted position (pull).
Durable, heavy-duty plunger clamp with a nodular iron base. 2-11/32" plunger travel. Plunger is tapped to accept any 1/2-13 spindle (M12 in metric). 1500 lbs. holding capacity.
Clamping Action
Clamped Position
Press Lever to Unlock
Open Position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1215, 1008, 1010, and/or 1018 steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
| Base | Nodular Iron | - | Zinc Plated Clear Chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Tapped Hole In Plunger | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Tapped Plunger, Flanged Base | 1/2-13 | 1500lbs. | 3.2lbs. |
