Jig Pins
L Pins are removable locating pins, precision ground for accurately aligning holes. L shaped pins feature a body inset into a solid handle and silver soldered to create a sturdy assembly. L pin handle ends have a small hole for attaching an optional cable. Made in USA.
Application Information

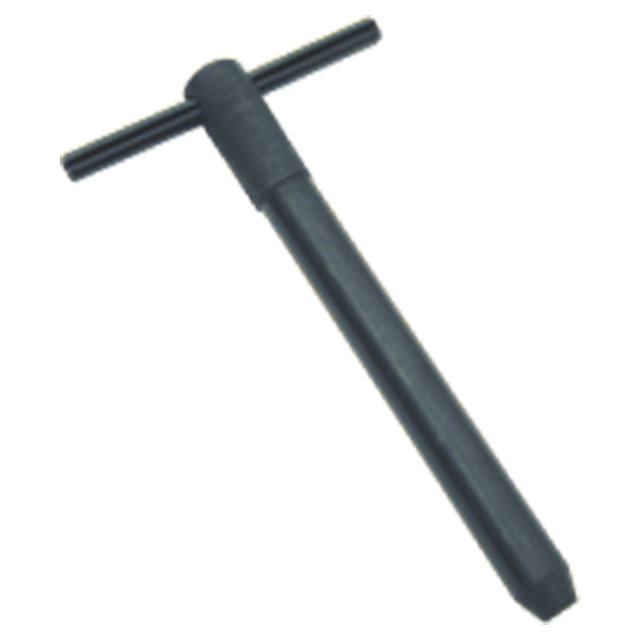

Jig Pins have a roll-pin handle that can be converted from a T handle to an L handle.
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1144 Steel | Heat Treated | Black Oxide |
| Handle | Spring Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) |
| 3/8" | 0.3750" | 7" | 3-1/2" | 1/2" | 1/2" |
