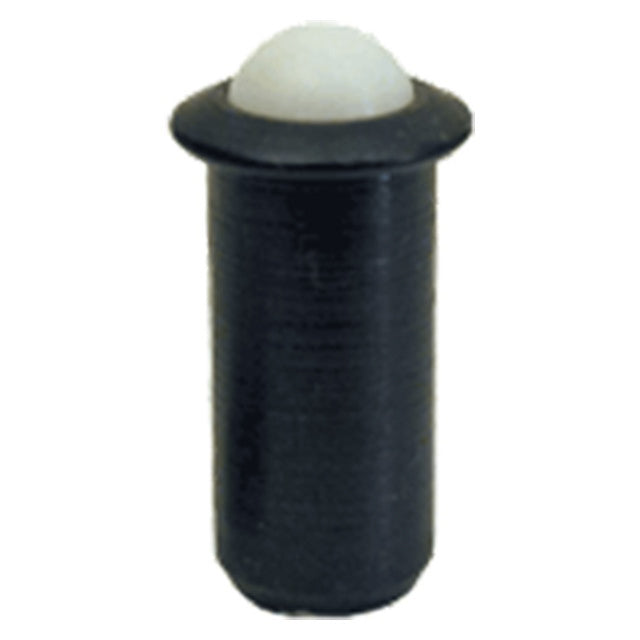

Press-Fit Ball Plungers-Steel with Delrin Ball
Simple, economical ball plunger ideal for installation in softer materials, such as aluminum, wood, or plastic. Use when a threaded hole would be impractical or when adjustment is not required. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess the shoulder.
The version has a steel body, and a Delrin ball to prevent marring. Made in USA.
Application Information
Internal View
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide Finish | Yes | Yes |
| Ball | White Delrin 500 | - | - | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
Parts Specification
| A Diametermeter (inch) | Initial End Force (lbs) | Final End Force (lbs) | B (inch) | C (inch) | D Diametermeter (inch) | E Diametermeter (inch) | F (inch) |
| 0.188" | 2 lbs. | 5 lbs. | 0.405" | 0.058" | 0.156" | 0.250" | 0.035" |
