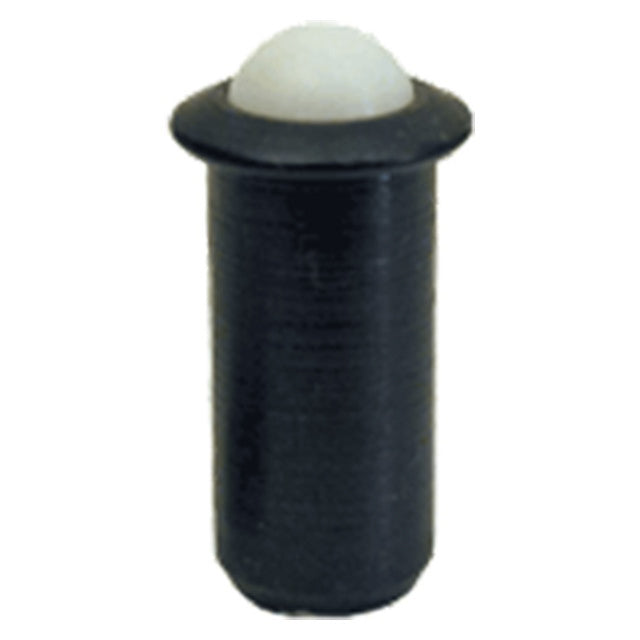

Press-Fit Ball Plungers-Steel with Delrin Ball
Simple, economical ball plunger ideal for installation in softer materials, such as aluminum, wood, or plastic. Use when a threaded hole would be impractical or when adjustment is not required. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess the shoulder.The version has a steel body, and a Delrin ball to prevent marring. Made in USA.
Application Information
Internal View
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide Finish | Yes | Yes |
| Ball | White Delrin 500 | - | - | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
Parts Specification
| A Diameter | Initial End Force (lbs) | Final End Force (lbs) | B | C | D Diameter | E Diameter | F |
| 0.188 | 1 lbs. | 2.5 lbs. | 0.405 | 0.058 | 0.156 | 0.250 | 0.035 |
