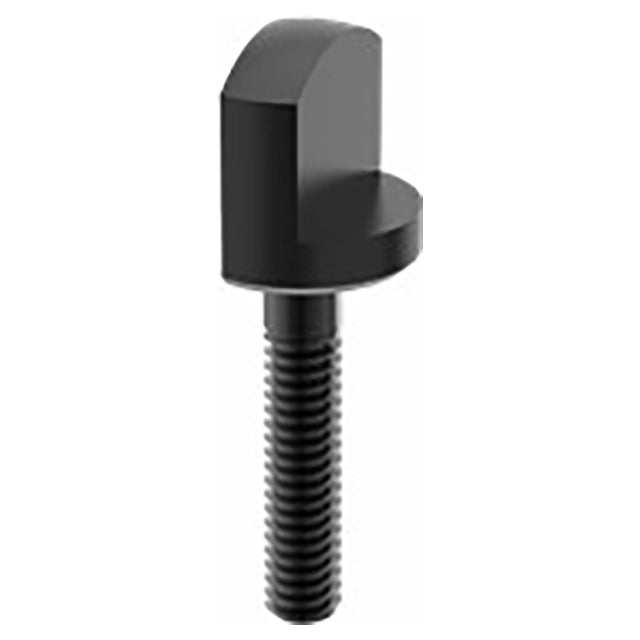

Half-Turn Screws
Rotate screw 180° (1/2 turn) to latch. Allows latching swing-away lids and jig plates without machining a slot. Made in USA.
Application Information
Turn the screw 180 degrees (1/2 turn) to secure.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size (Inch) | A (Inch) | B (Inch) | C Diameter (Inch) | D | E (Inch) | G (Inch) |
| 5/16-18" | 2-1/16" | 1" | 1" | 5/16 | 1-1/4" | 3/16" |
