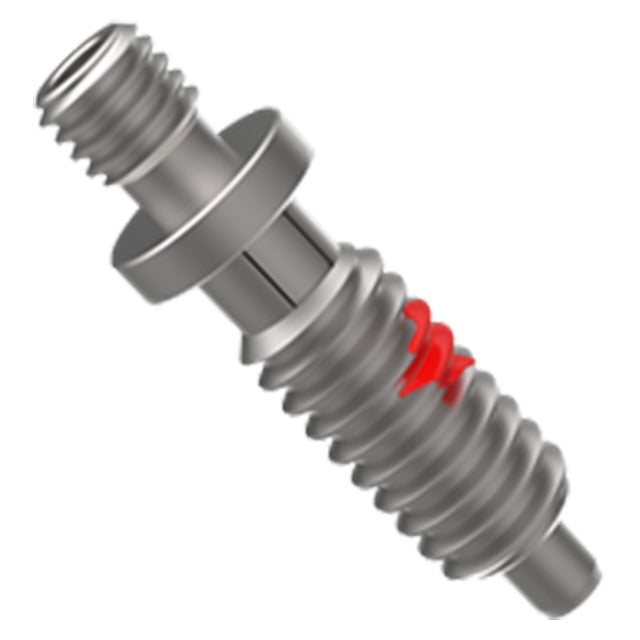

Hand-Retractable Plungers-Threaded Stud for Knob Handle
Spring-loaded plunger that locks in retracted position. To lock, pull knob back and turn 90°. Slight taper on plunger tip for easy alignment. The threaded-stud version accepts virtually any type of knob handle. Knob handles can be permanently secured with thread-locking adhesive if desired (an adhesive such as Loctite 263 is suitable for most applications). Made in USA.
Operation
Pull knob to retract
Turn 90° in either direction to lock
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger, Body and Knurled Head | 300-series Stainless Steel | - | - | Yes | Yes |
| Spring | 17-7PH Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter Nominal | B Diameter Actual | C (inch) | D (inch) | E (inch) | F Diameter (inch) | G (inch) | H Thread |
| #10-32 | 1 lbs. | 3 lbs. | — | 0.105 | 3/32" | 13/32" | 5/64" | 5/16" | 15/64" | #10-32 |
