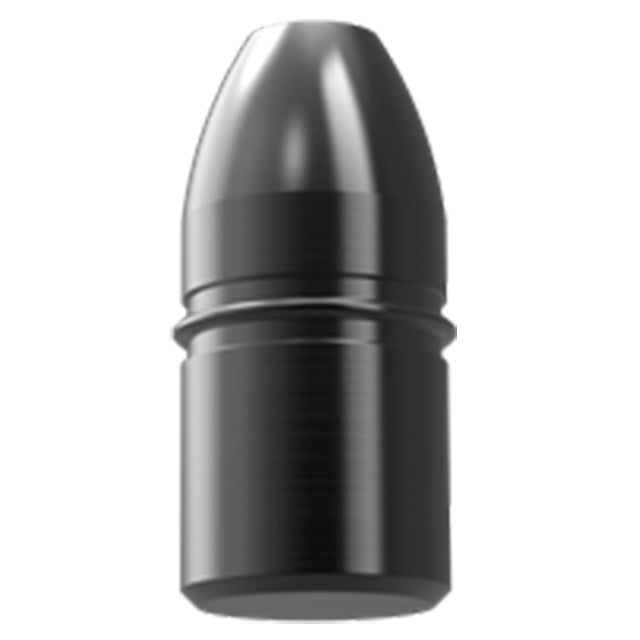

Bullet-Nose Dowels
Precision locating pin often used with a mating bushing to align two pieces of a fixture. The pin's head and shank diameters are concentric to within .0005" TIR. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel | Heat Treated Rc 50-55 | Black Oxide | Yes | Yes |
Parts Specification
| A Head Diameter Nominal (Inch) | A Head Diameter Actual (Inch) | B Shank Diameter Nominal (Inch) | B Shank Diameter Actual (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F (Inch) | G Diameter (Inch) |
| 3/8" | 0.3749" | 3/8" | 0.3760" | 0.407" | 1/2" | 0.18" | 1.03" | 3/16" |
