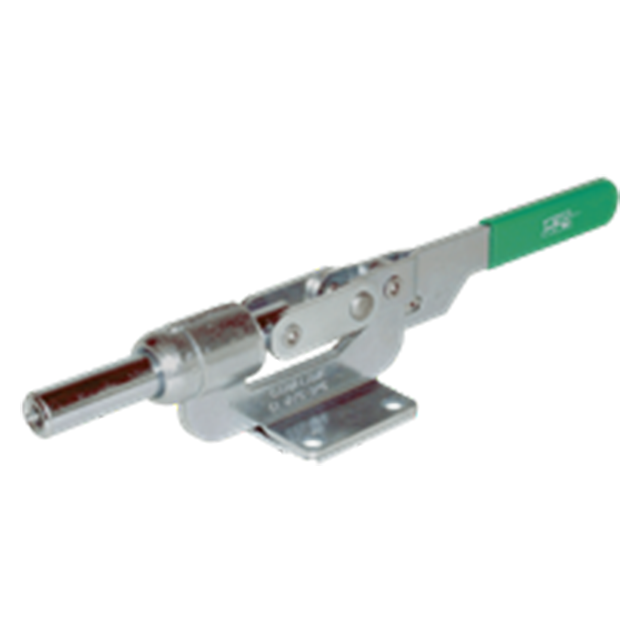

CL-275-SPC Series-600lbs.
Tapped Plunger
Reverse-action toggle push clamp. Plunger advances and locks by pivoting the handle backward into horizontal position. 1-3/8" plunger travel. Plunger is tapped to accept any 3/8-16 spindle (M10 in metric).
Clamping Action
Clamped Position
Open position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1215, 1008, 1010, and/or 1018 steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Tapped Hole In Plunger | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Tapped Plunger, Flanged Base | 3/8-16 | 600lbs. | 1.5lbs. |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
