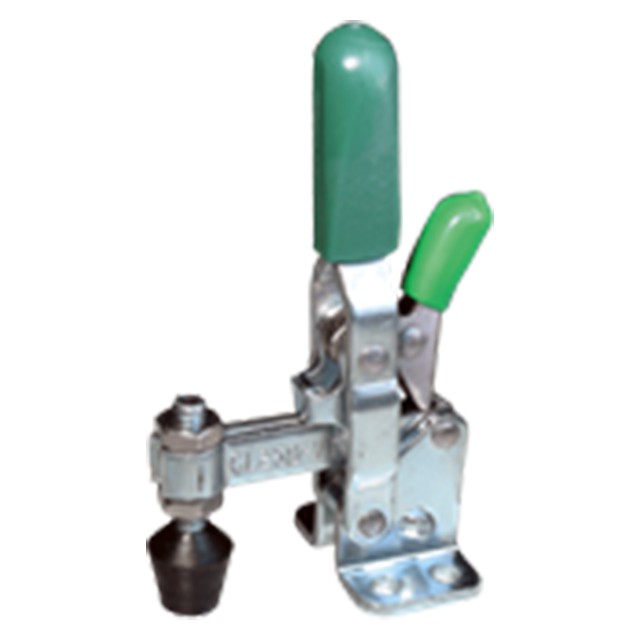

CL-250-LVTC Series with Safety Lock
Fixed Open Arm, Flanged Base
Safety-lock version of the CL-250-VTC toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle.
Arm opens 117° while handle moves 69°. Choose either a fixed open arm for fixed spindle location, or a long open arm for adjustable spindle location. 200 lbs. holding capacity.
Clamping Action
Clamped Position
(Press lever to unlock)
Open Position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Long Open Arm, Flanged Base | 200lbs. | 0.4lbs. |
