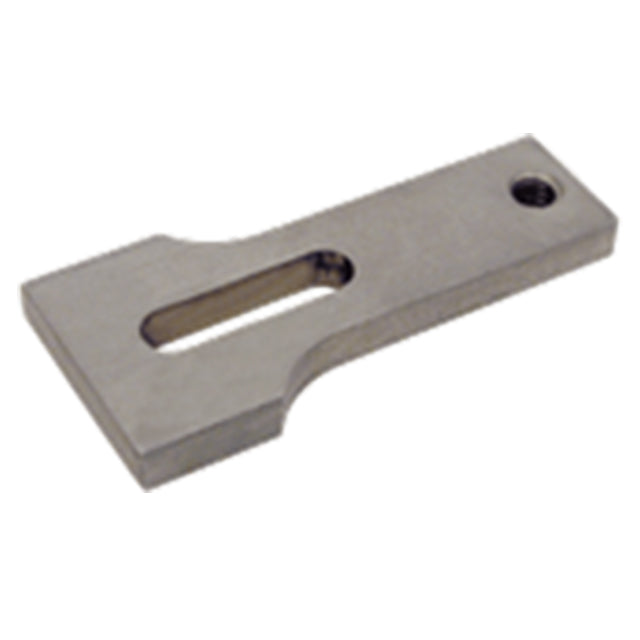

Wide-Nose Clamp Straps
Mini-size version of Tapped-Heel Clamp Straps. Extra-wide nose can be used to distribute clamping force evenly, or to clamp two parts simultaneously. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Stud Size (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L Thread (Inch) |
| 1/4-20" | 1/4" | 1-1/4" | 2-3/4" | 1-5/16" | 13/16" | 3/4" | 3/4" | 9/32" | 1-3/16" | 1/4-20" |
