Tapered Index Plungers

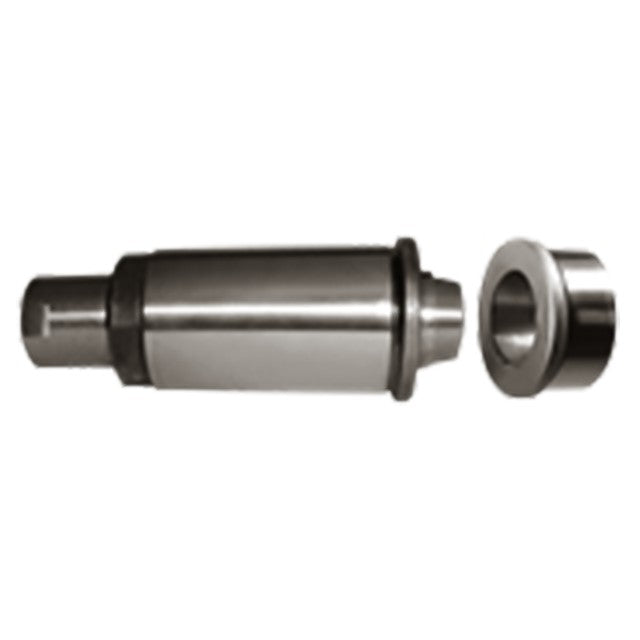

Index plungers are precision, heavy-duty assemblies with a retractable spring-loaded plunger and a matching locating bushing. Tapered Index Plungers feature a 15° taper on the plunger tip with a mating taper in the bushing. The taper makes alignment easier and also eliminates any binding during retraction. Made in USA.
Application Information
Customize by threading
Customize by tapping
Customize for an external link
Customize for an internal link
Customize for a bell crank
Internal View
Installation
Index plungers are manufactured with precision working tolerances and are designed for very light interference-fit installations to avoid binding of the mechanism.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body,Plunger and Retainer | 1144 Steel | Heat Treated Rc 50-55 | - | Yes | Yes |
| Center Shaft With blank End | 1144 Steel | - | - | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
| Bushing | 1144 Steel | Heat Treated | - | Yes | Yes |
Parts Specification
| Plunger Diameter (inch) | A Diameter Nominal (inch) | A Diameter Actual (inch) | B (inch) | D (inch) | H (inch) | J (inch) | L (inch) | P Diameter (inch) |
| 1" | 1-1/2" | 1.516 / 1.515 (Unground)" | 2-1/4" | 1-1/4" | 3/8" | 1/8" | 1/8" | 1-5/8" |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
