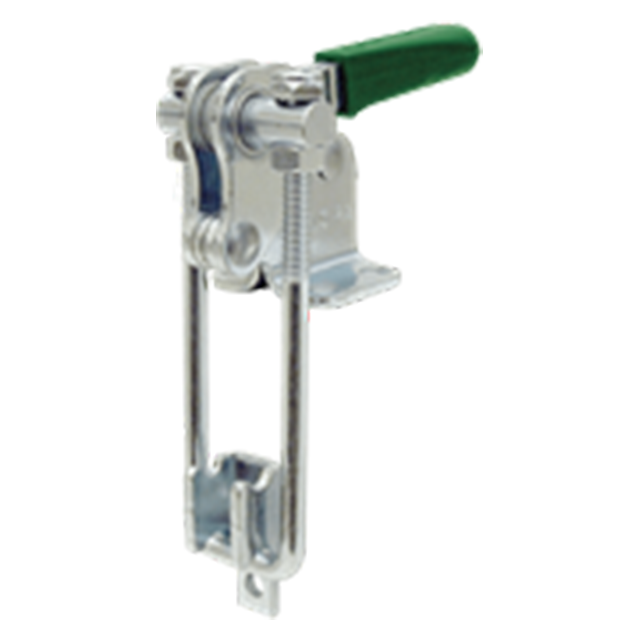

CL-210-PA Series-1000lbs.
Versatile latch clamp with a threaded U bolt for adjustability. Pulling direction is perpendicular to the base. Large, comfortable handle grip. 2-1/16" drawing movement. Threaded U bolt allows an 11/16" adjustment range. Supplied with matching latch plate. 1000 lbs. holding capacity.
Design Considerations
To achieve full holding capacity, U-bolt-type latch clamps must be used together with the furnished latch plate, or with a suitable custom latch plate of equal width and centerline height.
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 300-Series Stainless | - | - | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) | Replacement U Bolt | Replacement Latch Plate |
| Flanged Base | 1000lbs. | 0.6lbs. | CL-210-PA-S-UBOLT | CL-210-PA-S-L |
