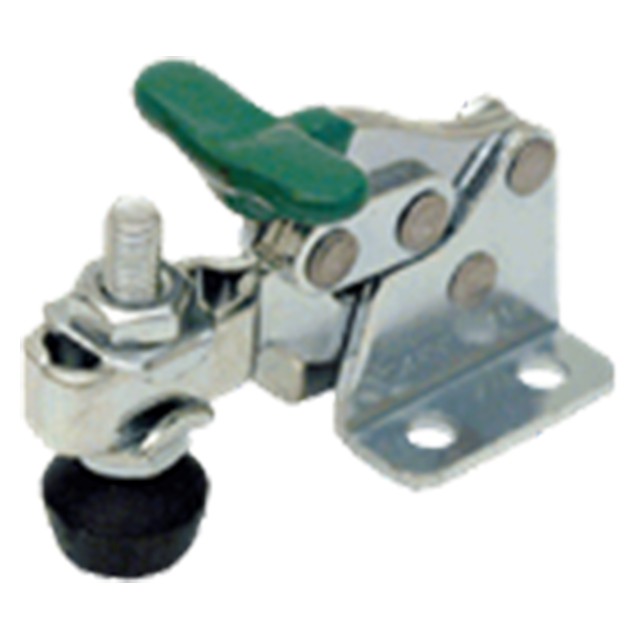

CL-200-VTC Series
Open Arm, Flanged Base, T Handle
Miniature hold-down clamp with a unique finger-grip T handle. Extremely compact design. Arm opens 92° while handle moves 175°. Open arm provides adjustable spindle location.
Clamping Action
Clamped Position
Open Position
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Open Arm, Flanged Base, T Handle | 150lbs. | 0.2lbs. |
