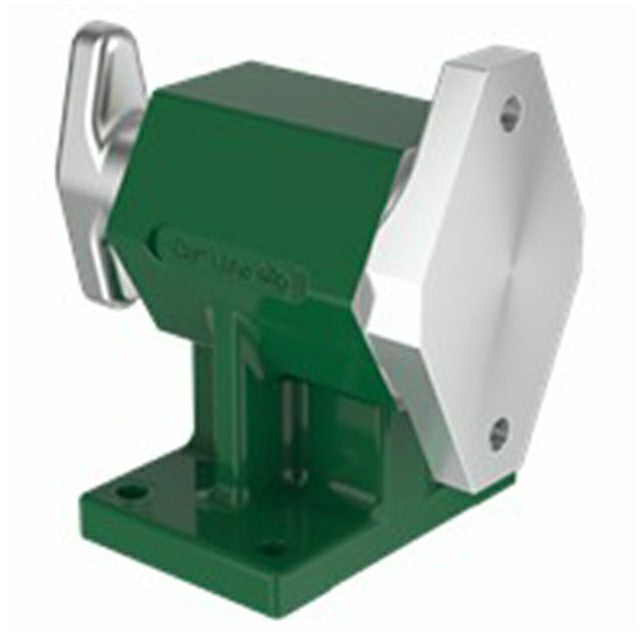

Locking Trunnions
Trunnions are rugged, precision bearing mounts for revolving fixtures. Ideal for assembly and welding fixtures, and any other applications where the part must be accessible from all sides. For heavy loads, use Trunnions in pairs to avoid a large bending moment. One Locking Trunnion and one Revolving Trunnion are often paired together. The locking version, has a friction-cone mechanism that stops the rotor at any angle by tightening the knob handle (loosen knob again to unlock). The revolving version has a free-rotating bearing at both ends of the rotor shaft, with no locking mechanism. Made in USA.
Application Information
For heavy loads, use Trunnions in pairs to avoid a large bending moment. One Locking Trunnion and one Revolving Trunnion are often paired together.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Rotor, knob handle, and friction cone | Aluminum Alloy | - | - | Yes | Yes |
| Base Housing | Aluminum Alloy with bronze bearings | - | Powder-coated exterior | Yes | Yes |
Parts Specification
| Load Capacity 18" From Face (lbs) | A (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L (Inch) | M Mounting Screws (Inch) | N (Inch) | P (Inch) | R (Inch) |
| 2500 lbs | 7-1/4" | 5-3/4" | 3-3/8" | 3/4" | 1-7/8" | 2-13/16" | 5-5/8" | 5-1/4" | 3-3/4" | 4-1/4" | 9" | 5/8 or M16" | 0.38" | 7/8" | 1-1/8" |
