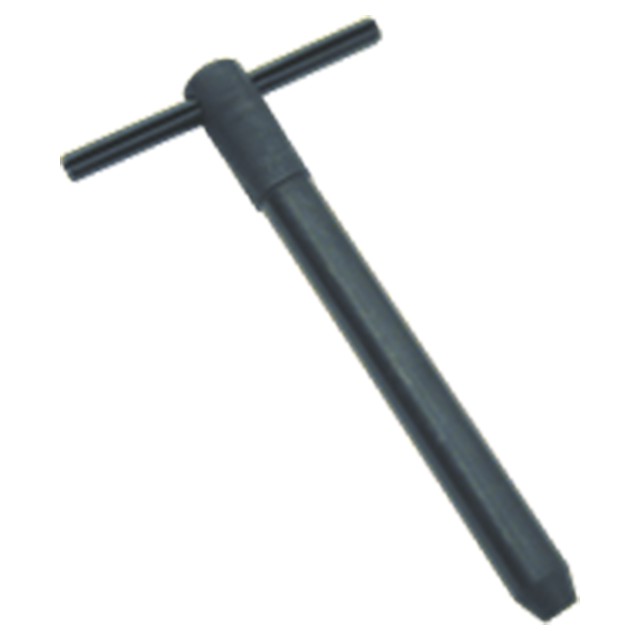

Jig Pins
Removable locating pins, precision ground for accurately aligning holes. Similar to an L or T Pin, but with an integral shoulder to keep the handle raised, and with pin diameter ground .0003" under nominal size. To convert from a T handle to an L handle, slide the roll-pin handle by tapping it with a hammer. Made in USA.
Application Information
Jig Pins have a roll-pin handle that can be converted from a T handle to an L handle.
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1144 Steel | Heat Treated | Black Oxide |
| Handle | Spring Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) | F (Inch) |
| 1/4" | 0.2497" | 2" | 5/32" | 3/8" | 2" | 3/16" |
