Spherical Washers

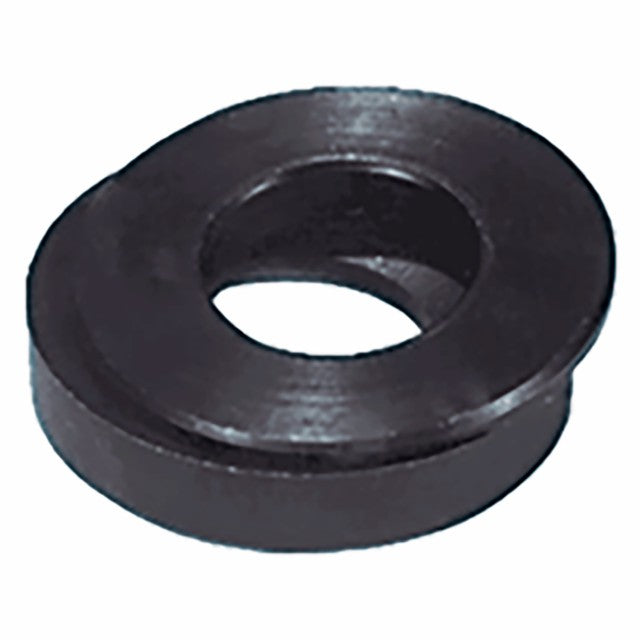

Heavy-duty two-piece washer that compensates whenever a stud and clamping surface are not exactly perpendicular. The top washer has a convex spherical radius, while the bottom washer has a matching concave spherical radius. Made in USA.
Material
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes | |
Parts Specification
| Bolt Size | A Diameter | B Diameter | C | D Diameter | R |
| 3/8 or M10 | 13/32 | 7/8 | 1/4 | 7/16 | 1-1/4 |
