Slotted-Heel Clamp Straps
Heavy-duty steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.
Application Information
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

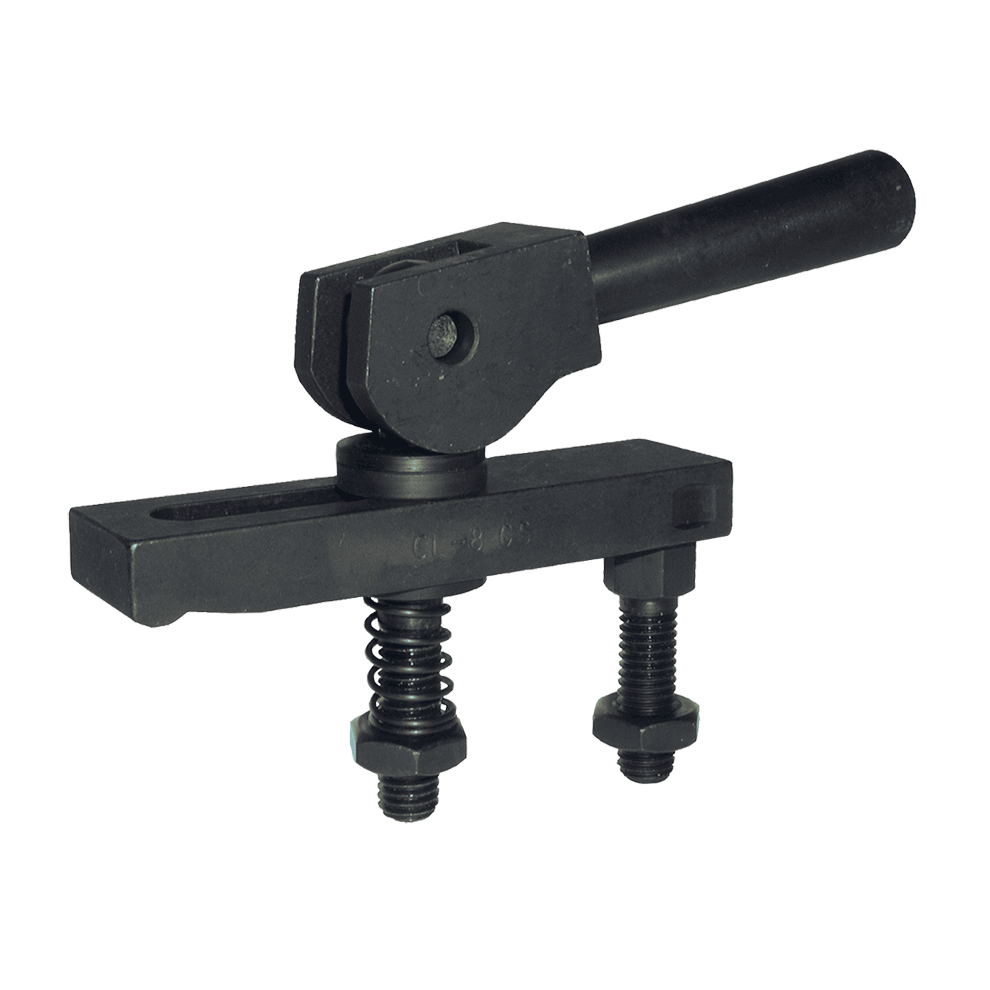

Assembly with Cam Handle & Spherical Washer
This clamp assembly includes a Slotted-Heel Clamp Strap plus the following Items:
- Cam Handle
- Spherical Washer
- Eye Bolt
- Clevis Pin
- Clamp Spring
- Flat Washer
- Jam Nut
- Clamp Rest
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size (Inch) | A (Inch) | B (Inch) | C (Inch) | E (Inch) |
| 3/8-16" | 3" | 1-1/8" | 1/2" | 1-9/32" |
