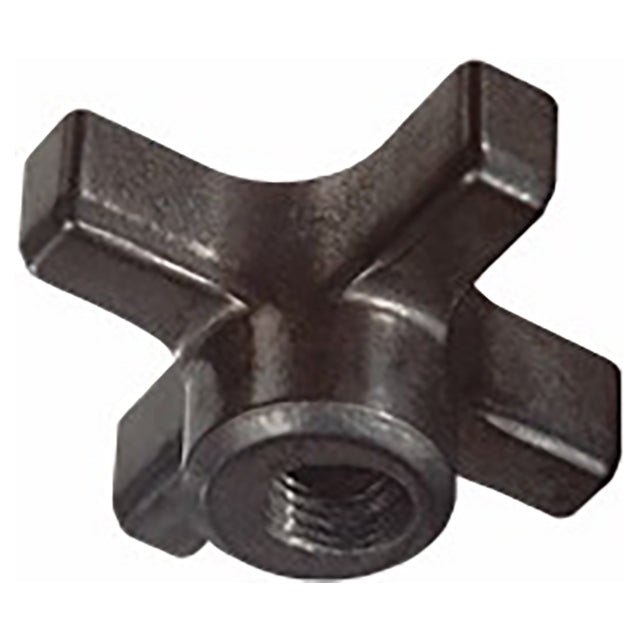

Quick-Acting Knobs
Quick-acting four-prong knob that slides in and out of clamping position, ideal when the knob must be completely removed for loading. Tilt knob to slide in, then straighten to engage threads and tighten. To remove, loosen knob, then tilt to slide out. Four-prong design provides a firm grip for applications requiring quick tightening and high torque. Made in USA.
Clamping Action
Tilt knob to slidein.
Design Considerations
For full strength, use a stud that extends slightly beyond the knob, to ensure that all threads are engaged.
Material
| Item | Meterial | Heat Treat | Finish | DFARS | RoHS |
| Quick-Acting Knobs | Sintered Iron | Yes | Yes | Yes | Yes |
Parts Specification
| Thread Size (Inch) | A (Inch) | B Diameter (Inch) | C (Inch) | D (Inch) | F Diameter (Inch) |
| 5/16-18" | 1-1/2" | 11/16" | 7/8" | 1/2" | 21/64" |
