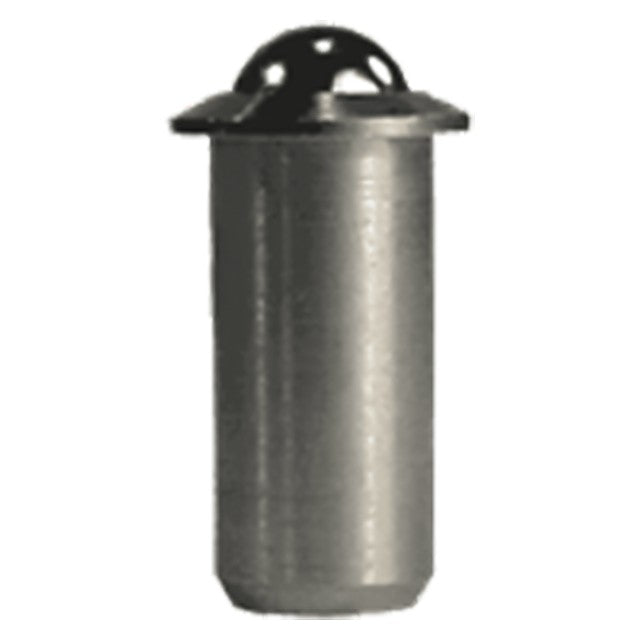

Press-Fit Ball Plungers-Stainless Steel
Simple, economical ball plunger ideal for installation in softer materials, such as aluminum, wood, or plastic. Use when a threaded hole would be impractical or when adjustment is not required. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess the shoulder.
The version has a stainless steel body for extra corrosion resistance, and a 440C stainless steel ball. Made in USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 300-Series Stainless Steel | - | - | Yes | Yes |
| Ball | 440C Stainless Steel | - | - | Yes | Yes |
| Spring | 302 Stainless | - | - | Yes | Yes |
Parts Specification
| A Diameter (inch) | Initial End Force (lbs) | Final End Force (lbs) | B (inch) | C (inch) | D Diameter (inch) | E Diameter (inch) | F (inch) |
| 0.125" | 0.75 lbs. | 2.5 lbs. | 0.252" | 0.035" | 0.093" | 0.187" | 0.032" |
