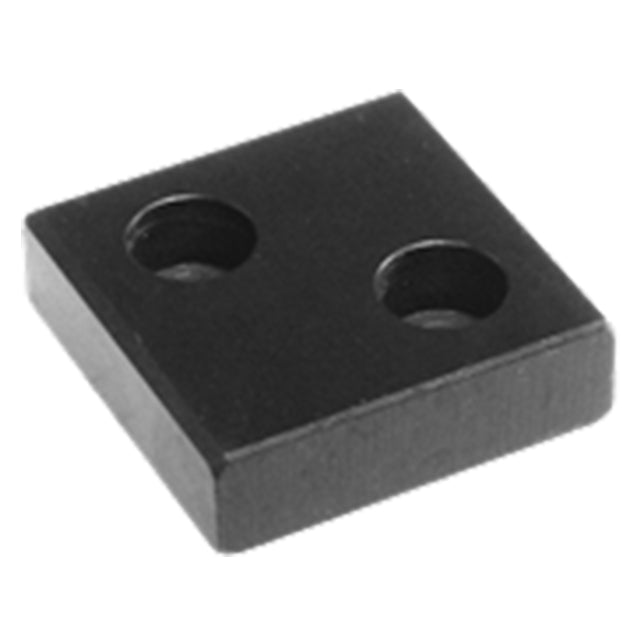

Jig Leg Plates
Precision rest pad with a large contact area, ground for accurate height location. Mount with two socket-head cap screws (not furnished). Jig Leg Plates are extremely useful as supports, side locator pads, and jig feet. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1020 Steel | carburized-hardened | Black Oxide | Yes | Yes |
Parts Specification
| A (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) |
| 1-1/4" | 0.3750" | 3/8" | 1/4-20 or M6" | 1/2" |
