Product Information

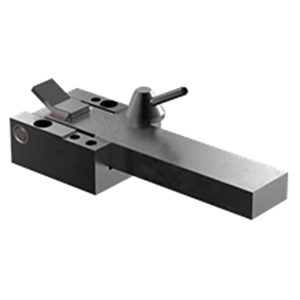

New Item! Hinged Bushing Plates are precise, heavy-duty bushing-plate assemblies for large-scale production jigs. The swing-away arm is precision ground but left unhardened for installing drill bushings (wear surfaces are hard welded and ground). The arm swings open a full 120 Degree for loading clearance. The mounting base is hardened and precisely ground to provide accurate location. The base includes liner bushings as bearings for the hardened pivot pin, and a half-turn latch screw. Hinged Bushing Plates are available in three sizes. Arms can be ordered separately, to use as replacements or to switch tooling. The pivot pin can be easily removed by loosening the setscrew, allowing quick arm changeover. For a version without the dowel holes, add a 1 to the part number. Example: CL-3-HIBP 4x5x2 base with dowel holes CL-31-HIBP CL-3-HIBP without dowel holes.
| Item | Material | Head Tread | Stud |
| Base | 1018 Steel | - | Wear surfaces hard welded and ground, black oxide |
| Arm | 1018 Steel | - | Wear surfaces hard welded and ground, black oxide |
| Pivot Pin | 4130 Steel | Head Treaded | None |
| Manufacturer Part Number | CL-2-HIBP |
| Screw Size (Inch) | 3-1/2" |
| Product Type | Hinged Bushing Plate |
