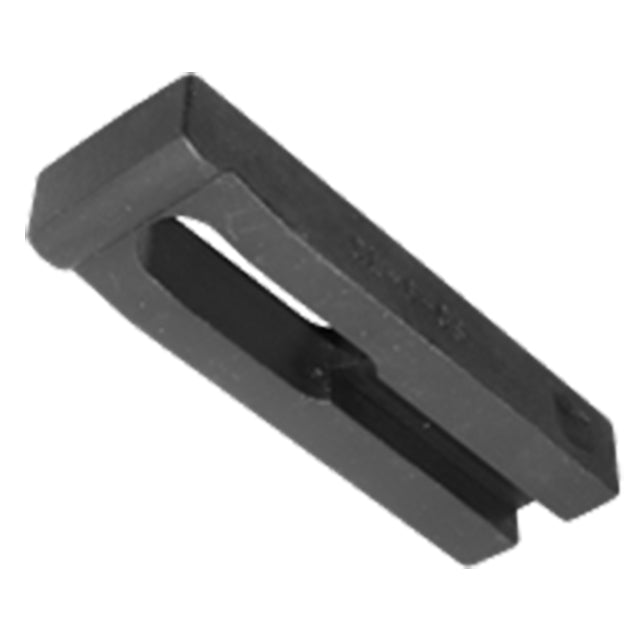

Slotted-Heel Clamp Straps
Heavy-duty steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.
Application Information
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Stud Size (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L (Inch) |
| 5/16-18 or M8" | 1/2" | 3/4" | 3" | 1-11/32" | 1" | 5/16" | 7/16" | 11/32" | 7/32" | 1/4" |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
