Tapped-Heel Clamp Straps

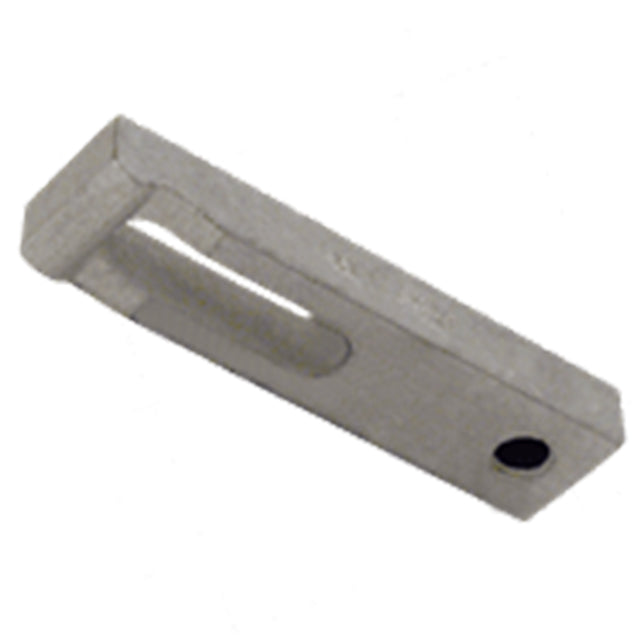

Mini-size stainless steel version of Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Stud Size | B | C | D | E | F | G | H | J | K Thread |
| #10-32 | 1/4 | 1/2 | 2 | 27/32 | 21/32 | 3/16 | 5/16 | 7/32 | #10-32 |
